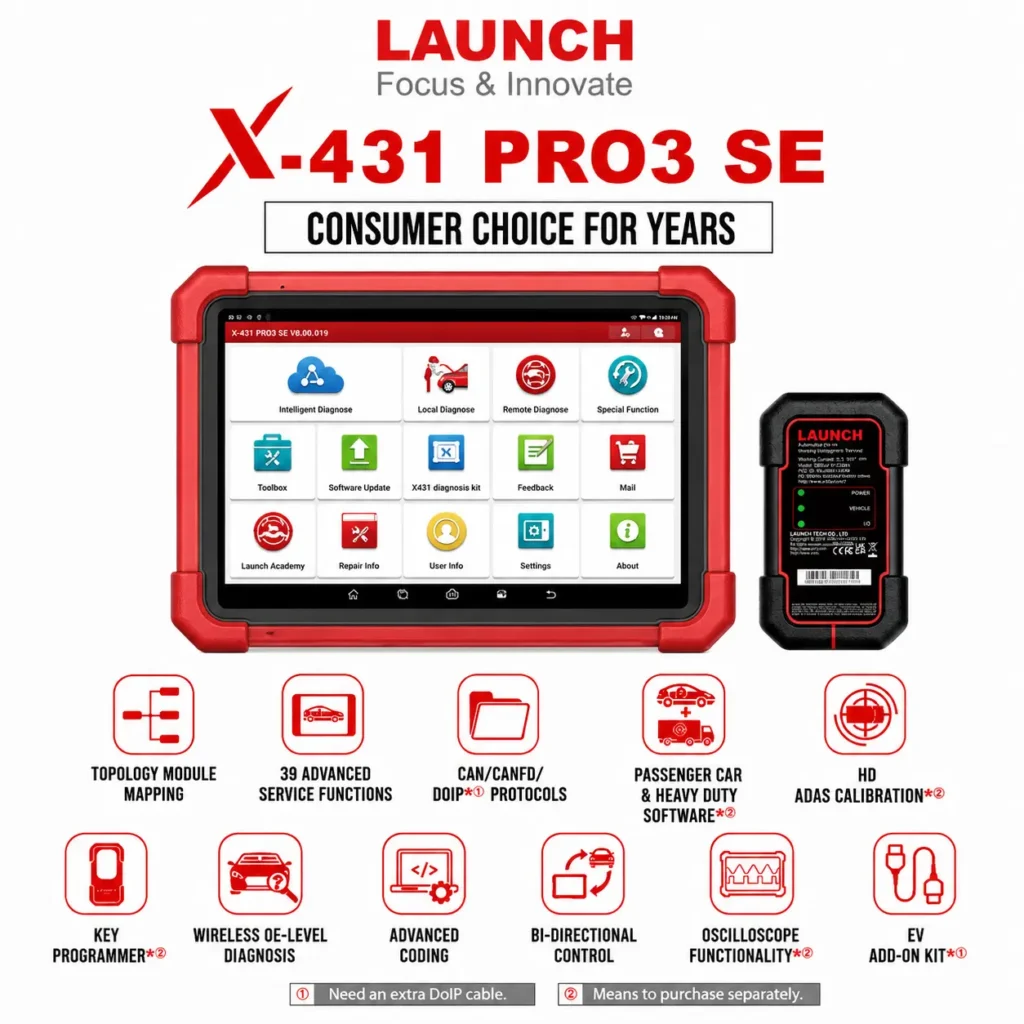

X-431 Pro3 SE

SPECIFICATION

OS Android 10.0

Network Mapping Topology module mapping

Service Functions 39 advanced service functions

Protocol Support CAN/CANFD/DoIP* (DoIP needs extra cable)

Coding Advanced coding

Vehicle Control Bi-directional control

Addon's Passenger Car & Heavy-Duty Software

DIagnostics Wireless OE-level diagnosis

Enquire Now

Product Details

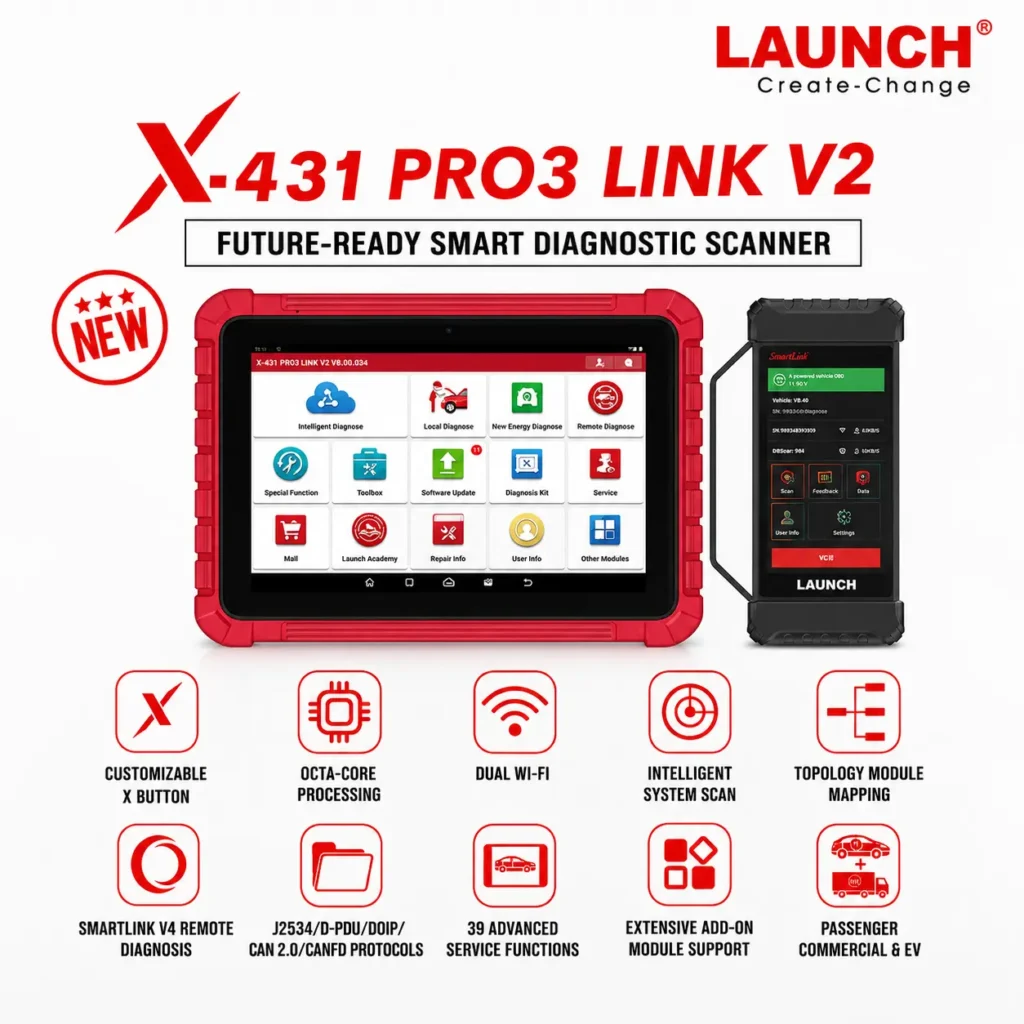

X-431 Pro3 Link V2​

SPECIFICATION

OS Android 10.0

DISPLAY 10.1" , 1280*800

CPU 2.20GHz,Octa-Core

RAM 4GB

STORAGE 128GB

BATTERY 47.88Wh (7.6V,6300mAh)

CAMERA Rear 8MP

INTERFACE Type-C (45W fast charge), Type-A

Enquire Now

Product Details

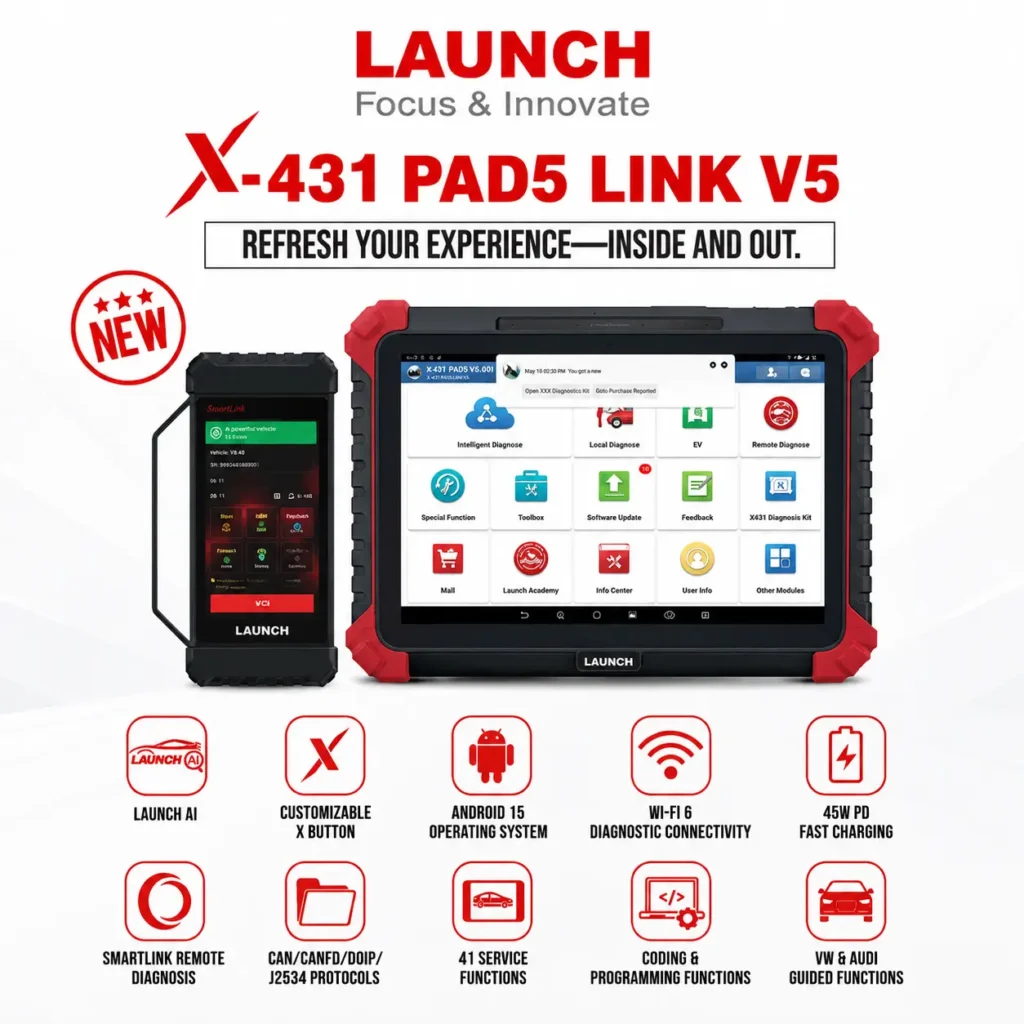

X-431 Pad5 Link V5

SPECIFICATION

Ai Diagnosis Launch AI assisted diagnosis

Custom Controls Customizable X button

OS Android 15

Connectivity Wi-Fi 6 diagnostic connectivity

Remote Diagnosis SmartLink Remote Diagnosis

Protocol Support CAN/CANFD/DoIP, J2534

Programming Advanced programming supportP

Service Function 41 service functions

Guided Diagnostics VW & Audi guided functions

Enquire Now

Product Details

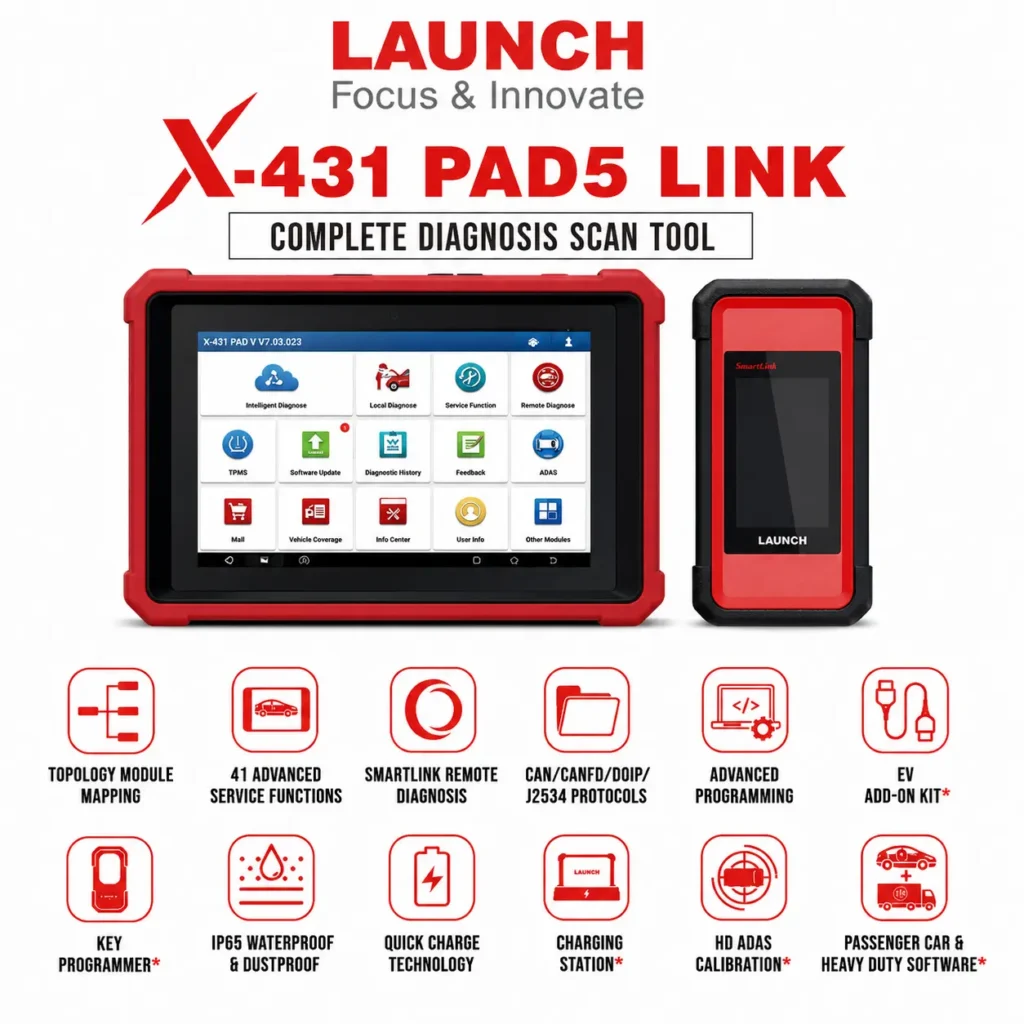

X-431 Pad5 Link

SPECIFICATION

Network Mapping Topology module mapping

Durability IP65 waterproof & dustproof

Optional Addon's EV Add-On Kit*

Optional Addon's Passenger Car & Heavy-Duty Software*

Protocol Support CAN/CANFD/DoIP, J2534

Service Functions 41 advanced service functions

Programming Advanced programming supportP

Charging Quick charge technology

Security Access Optional SGW unlock — VAG, FCA, Renault/Dacia

Enquire Now

Product Details

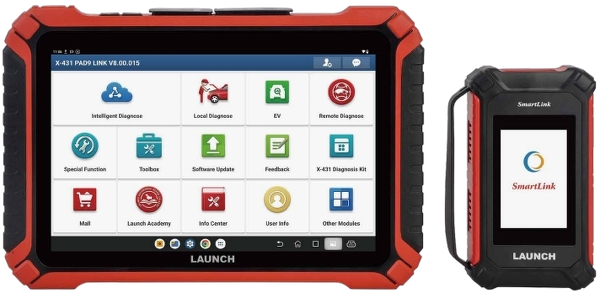

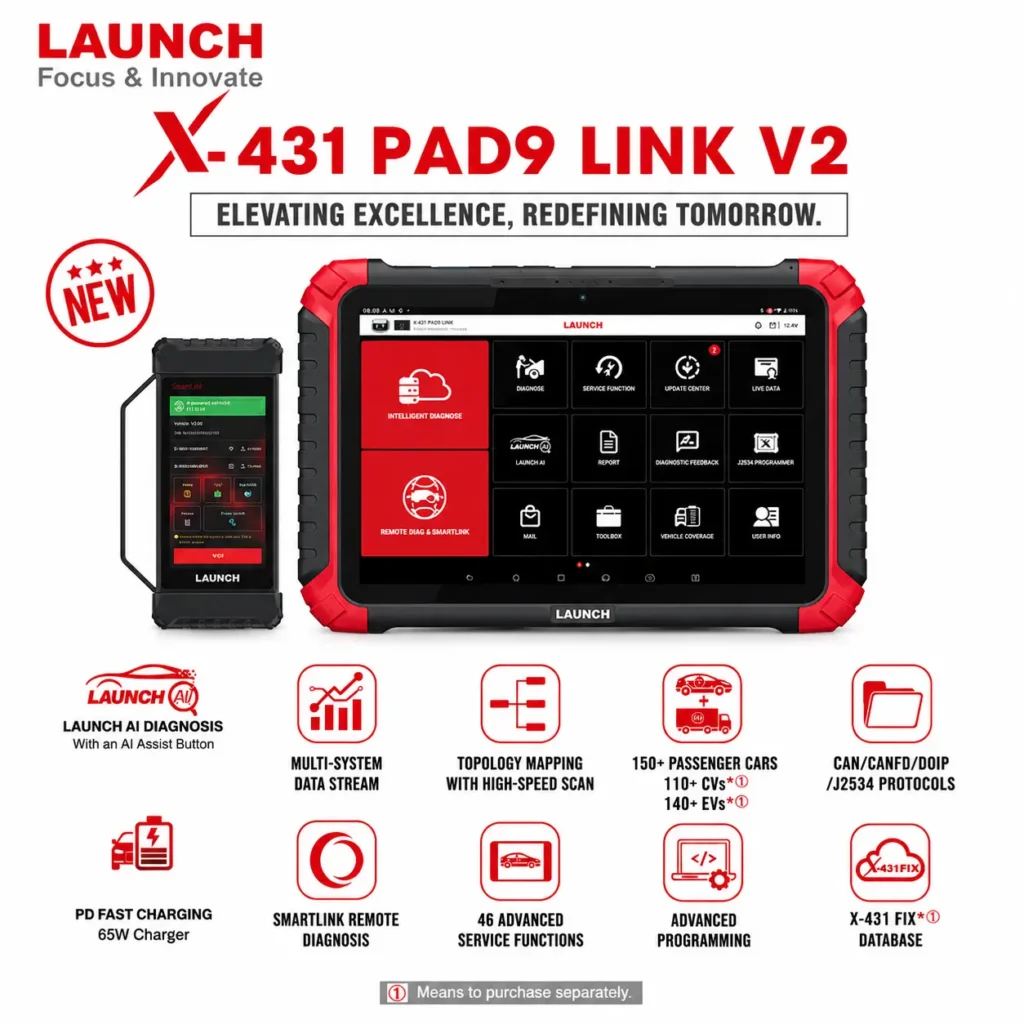

X-431 PAD9 Link V2

SPECIFICATION

Ai Diagnosis Launch AI Diagnosis with dedicated AI Assist Button

Data Analysis Multi-system data stream

Network Mapping Topology mapping with high-speed scan

Vehicle Coverage 150+ passenger vehicle brands, 110+ commercial vehicle brands (additional CVS/EVS available)

Protocol Support CAN/CANFD/DoIP, J2534

Service Functions 46 advanced service functions

Programming Advanced programming supportP

Charging 65W PD fast charging

Security Access Optional SGW unlock — VAG, FCA, Renault/Dacia

Enquire Now

Product Details

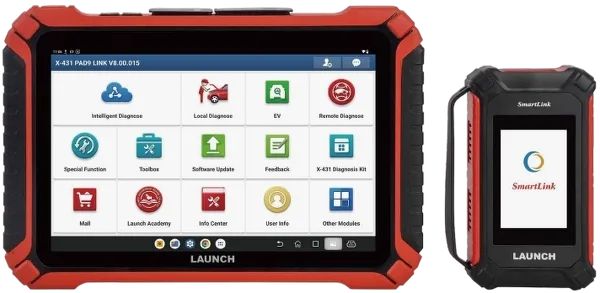

X-431 PAD9 Link

Elevating Excellence, Redefining Tommorow

SPECIFICATION

OS Android 13

DISPLAY 13.6", 2560*1600 TFT

CPU 2.0GHz, Octa-Core

RAM 12GB

STORAGE 512GB

BATTERY 71.1Wh (7.6V, 9360mAh)

CAMERA Rear 20MP, Front 8MP

VCI CONNECTION 2.4GHz&/5GHz Dual Wi-Fi

DIMENSION 377*246*35 (mm)

INTERFACE Type C, Type A, DC IN, Micro SD, Mini HDMI

Enquire Now

Product Details

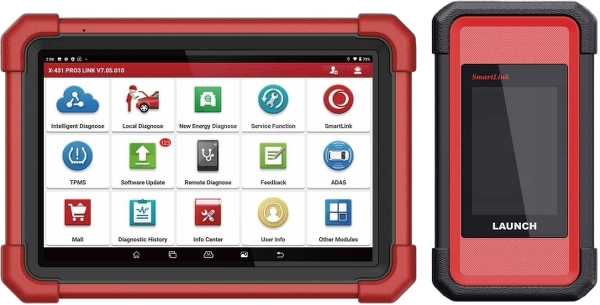

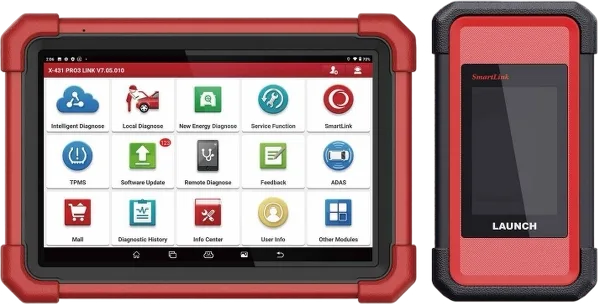

X-431 PRO3 Link

Dual Diagnostic Mode Scanner

SPECIFICATION

OS Android 10.0

DISPLAY 10.1" , 1280*800

CPU 2.0GHz,Quad-Core

RAM 4GB

STORAGE 64GB

BATTERY 47.88Wh (7.6V,6300mAh)

CAMERA Rear 8MP

VCI CONNECTION Bluetooh/USB wired

DIMENSION 274*190.5*40.5 (mm)

INTERFACE TYPE A*1 & TYPE C*1

Enquire Now

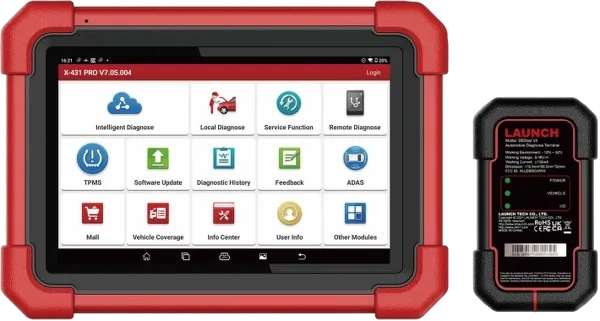

X-431 PRO SE

Best Seller for Years.

SPECIFICATION

OS Android 10.0

DISPLAY 8", 1280*800

CPU 2.0GHz,Quad-Core

RAM 4GB

STORAGE 64GB

BATTERY 47.88Wh (7.6V,6300mAh)

CAMERA Rear 8MP

VCI CONNECTION Bluetooth/USB wired

DIMENSION 234*166*39.5 (mm)

INTERFACE TYPE A*1 & TYPE C*1

Enquire Now

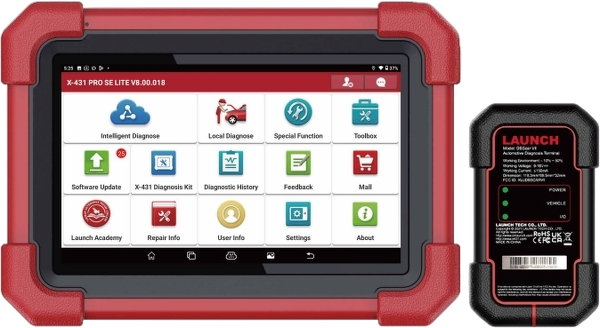

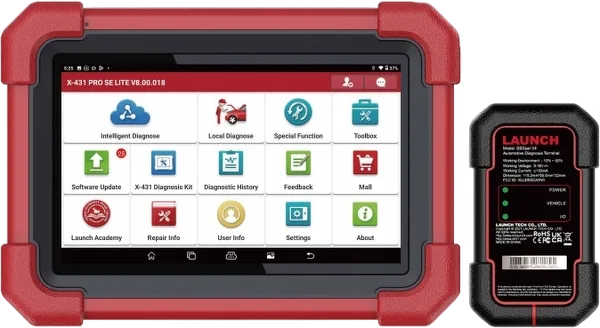

X-431 PRO SE Lite

Precise Diagnostics, Expert Automotive Repair

SPECIFICATION

OS Android 10.0

DISPLAY 7", 1024*600

CPU 2.0GHz,Quad-Core

RAM 4GB

STORAGE 64GB

BATTERY 47.88Wh (7.6V,6300mAh)

CAMERA Rear 8MP

VCI CONNECTION Bluetooth/USB wired

DIMENSION 218*154*39.5 (mm)

INTERFACE TYPE A*1 & TYPE C*1

Enquire Now

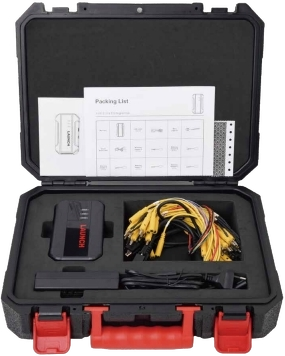

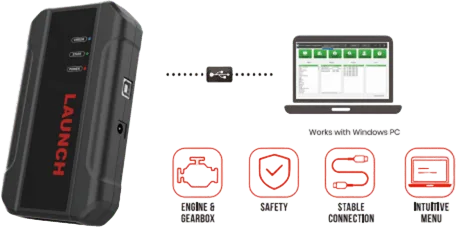

X-431 ECU & TCU Programmer

Standalone Clone Product

FEATURES

• Connecting with PC, easily read, write, and program an extensive range of ECU and TCU brands and types.
• 2D menu, clear and easy to choose.
• Powerful searching function.
• Convenient modification of ECU data.
• Stable USB communication, three times faster than android devices.
• Easy data copying.
• Engine data validation supported. Exclusive
• Engine anti—theft deactivation function added. Exclusive

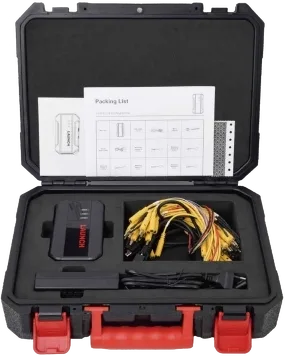

◆ Current adapter accessories

• X-PROG3 Adapter Cable 1 (DQ200XX)
• X-PROG3 Adapter Cable 2 (VL381)
• X-PROG3 Adapter Cable 3 (DQ380)
• X-PROG3 Adapter Cable 4 (DQ250)
• X-PROG3 Adapter Cable 5 (DL501)
• X-PROG3 Adapter Cable 6 (DL382)
• X-PROG3 Adapter Cable 7 (VGS-NAG3)
• X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)
• X-PROG3 Adapter Cable 9 (VGS3-NAG2)
• X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)
• X-PROG3 Adapter Cable 11 (MPS6)
• X-PROG3 Adapter Cable 12 (DPS6)
• X-PROG3 Adapter Cable Main Line (ML)

SPECIFICATION

CPU 72MHz

POWER CONSUMPTION ≤3W

INPUT VOLTAGE 12~23V

WORKING TEMPERATURE 0°C~50°C

DIAGNOSTIC COMMUNICATION USB

DIMENSION 142*80*20(mm)

INTERFACE Type-B*1 & DC-IN*1 & DB26*2

Enquire Now

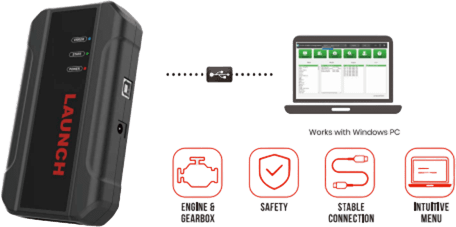

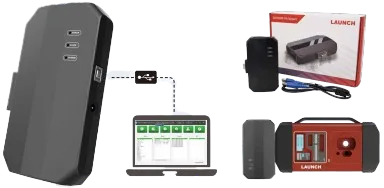

X-PROG 3 PC Adapter

Full ECU & TCU Cloning Companion

HIGHLIGHTS

• Pair up with X-PROG3 to effortlessly clone ECU and TCU from your PC.
• 2D menu, clear and easy to choose.
• Powerful search function.
• Convenient copy and modification of ECU data.
• Fast and stable USB communication.
• Engine data validation supported.
• Engine anti-theft deactivation function added.

Enquire Now

SPECIFICATION

CPU 72MHz

POWER CONSUMPTION ≤3W

INPUT VOLTAGE 12~23V

WOKING TEMPERATURE 0°C~50°C

DIAGNOSTIC COMMUNICATION USB

DIMENSION 142*80*20(mm)

INTERFACE Type-B*1 & DC-IN*1 & DB15*1 & DB26*2

Enquire Now

ECU/TCU Supporting List

Name	Type	Brand	X-431 ECU & TCU Programmer
EDC16xx	ECM	Bosch	Support
EDC17xx	ECM	Bosch	Support
MD1CSxxx	ECM	Bosch	Support
MD1CPxxx	ECM	Bosch	Support
ME17.x.x	ECM	Bosch	Support
MED17.x.x	ECM	Bosch	Support
MED9.x.x	ECM	Bosch	Support
MEV17x.x	ECM	Bosch	Support
MEVD17.x.x	ECM	Bosch	Support
MG1CSxxx	ECM	Bosch	Support
MG1CPxxx	ECM	Bosch	Support
MSDxx	ECM	Continental/SIEMENS	Support
MSVxx	ECM	Continental/SIEMENS	Support
SDIX	ECM	Continental	Support
GM Exx/Txx	ECM	DELCO	Support
SIM271xx	ECM	Continental	Support
SIMOS12.x	ECM	Continental	Support
SIMOS8.x	ECM	Continental	Support
SIMOS-PCR2.x	ECM	Continental	Support
6HPxx	TCM	ZF	Support
8HPxx	TCM	ZF	Support
7DCT300	TCM	ZF	Support
9G Tronic	TCM	Bosch	Support

Name	Type	Brand	X-431 ECU & TCU Programmer
Alxxx	TCM	ZF	Support
TCxx	TCM	Bosch	Support
DPS6/DC4	TCM	GETRAG	Support
DKG	TCM	GETRAG	Support
DLxxx	TCM	Temic	Support
DQxxx	TCM	Temic	Support
MPS6	TCM	GETRAG	Support
SPS6	TCM	GETRAG	Support
VGSx	TCM	GETRAG	Support
VL381	TCM	Temic	Support
GM 6Txx/6Lxx	TCM	DELCO	Support
ZF 9HP	TCM	ZF	Support
DC4-GEN2	TCM	GETRAG	Support
8HP GEN3	TCM	ZF	Support
VGS3-FDCT	TCM	GETRAG	Support
CRD3.x.x	ECM	Continental/SIEMENS	Support
6JF/6JO	ECM	Marelli	Support
DSI 6AT	TCM	DSI	Support
SH725xx	ECM	DENSO	Support
R2xx/RFxx	ECM	DENSO	Support
7GF/8F3	ECM	Marelli	Support
MEDG17.9.8	TCM	Bosch	Support
MEG17.9.2	TCM	Bosch	Support

Enquire Now

CRT 511E

Standalone TPMS Diagnostics

SPECIFICATION

OS Android 10.0

DISPLAY 7", 1024*600

CPU 2.0GHz,Quad-Core

RAM 4GB

STORAGE 64GB

BATTERY 47.88Wh (7.6V,6300mAh)

CAMERA Rear 8MP

VCI CONNECTION Bluetooth/USB wired

DIMENSION 218*154*39.5 (mm)

INTERFACE TYPE A*1 & TYPE C*1

Enquire Now

FEATURES

• Covers over 99% of global vehicles with tire pressure system.
• Activate and match with all 315 MHz/433 MHz tire pressure sensors.
• Reset, relearn and reprogram TPMS sensors fast.
• Diagnose the TPMS issues, read and clear TPMS DTCs.
• Reprogramming LAUNCH sensors with unlimited times.

• Read tire pressure, tire temperature and battery status accurately.
• Built-in learning tutorial for easy operation.
• Multiple ID generation methods:
  Manual creation, copy ID, Automatic creation.
• OBD II / EOBD functions included.

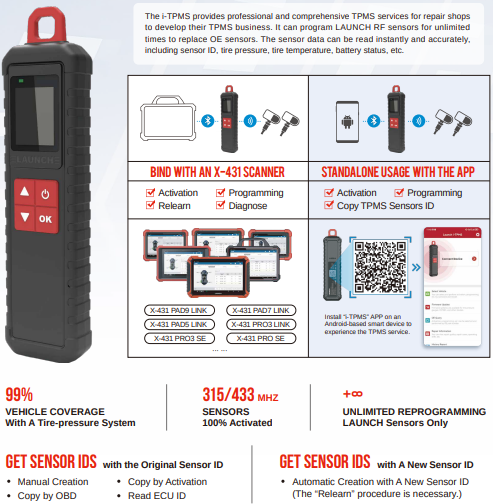

I-TPMS

New generation handled TPMS Service tool

SPECIFICATION

CPU 72MHz

POWER CONSUMPTION ≤3W

INPUT VOLTAGE 12~23V

RAM 4GB

WORKING TEMPERATURE 0°C~50°C

DIAGNOSTIC COMMUNICATION USB

DIMENSION 142*80*20(mm)

INTERFACE Type-B*1 & DC-IN*1 & DB15*1 & DB26*2

Enquire Now

X-PROG 3 PC Adapter

Full ECU & TCU Cloning Companion

SPECIFICATION

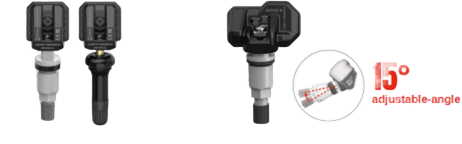

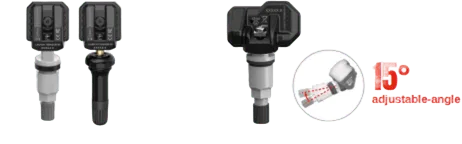

MODEL LAUNCH TSENSOR-03 LAUNCH TSENSOR-05

OPERATING FREQUENCY 315MHz / 433MHz 315MHz / 433MHz

BATTERY VOLTAGE 3.0V 3.0V

RF TRANSMITTER POWER 5-8dBm 5-8dBm

STORAGE TEMPERATURE -40°C-125°C -40°C-125°C

WORKING TEMPERATURE -40°C-125°C -40°C-125°C

PRESSURE MONITOR RANGE 0-800kPa 0-800kPa

PRESSURE READING ACCURACY ±10kPa ±10kPa

TEMPERATURE READING ACCURACY ±5°C ±5°C

DIMENSION 42.5*19.5*73(mm) 27.2*20*76.4 (mm)

WEIGHT 28g 24g

Enquire Now

FEATURES

• The LAUNCH TSENSOR-05 is significantly smaller than its predecessor but offers a stronger signal.
• Optimized RF antenna for better signal transmission.
• Compatible with more than 99% of OE sensors in 315MHz / 433MHz.
• The pressure value of LAUNCH Tsensors can be accurate to 0.1BAR with an international leading automotive-grade chip.

• Able to replace all the OE tire pressure sensors, copy the OE sensor data and can be programmed for unlimited times.
• Over-the air wireless programming and battery life lasts for more than 4 years.
