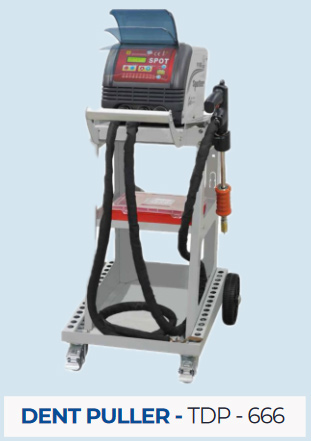

DENT PULLER - TDP - 666
SPECIFICATIONS
| Model | TDP - 666 |
| Input Voltage | 220V 50/60Hz |
| Output Voltage | AC6V-10V Carbon rod heating AC1V-12V Washer Fusion AC1V-13V Butt Weld |
| Input Power | 10KW |
| Instant Max. Current | 5400A |
| Input Current | 55A |
| Operation Way | Continuity |
| Time Regulation System | 0-99 m/s |
| Operation Place | Stepless |
| One Side Welding Thickness | 0.8 + 1.2 mm |
| Vacuum Cupule Device | 180 Kg |
| Dimension | 620X450X980 mm |
| Weight | 80 Kg |

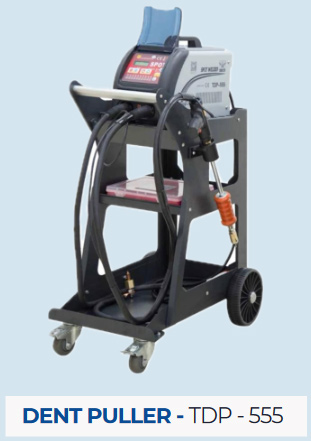

DENT PULLER - TDP - 555
SPECIFICATIONS
| Model | TDP - 555 |
| Input Voltage | 220V 50/60Hz |
| Output Voltage | AC6V-10V Carbon rod heating AC1V-12V Washer Fusion AC1V-13V Butt Weld |
| Input Power | 10KW |
| Instant Max. Current | 2000A |
| Input Current | 30A |
| Operation Way | Continuity |
| Time Regulation System | 0-99 m/s |
| Operation Place | Stepless |
| One Side Welding Thickness | 0.8 + 1.2 mm |
| Vacuum Cupule Device | 180 Kg |
| Dimension | 460x480x1050 (mm) |
| Weight | 35 Kg |

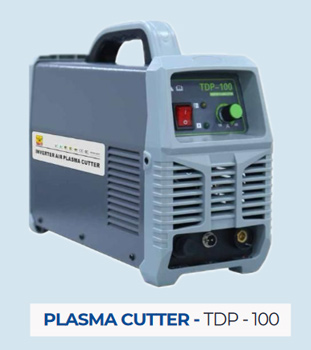

PLASMA CUTTER - TDP -100
SPECIFICATIONS
| Model | TDP - 100 |
| Input Voltage ± 10% | 220V 50/60Hz |
| Rated Input Power | 30 A |
| No-Load Voltage | 230 V |
| Output Current Range | 15 - 40 A |
| Rated Output Voltage | 94V |
| Rated Duty Cycle | 35 % |
| Efficiency | 80 % |
| Power Factor | 0.93 Cos⍬ |
| Insulation Class | B |
| Protection Class | IP23 |
| Arc-Starting | Touch arc-leading |
| Max. Cutting Thickness | 12 mm |
| Overall Dimension | 410x165x260 mm |
| Weight | 8 Kg |

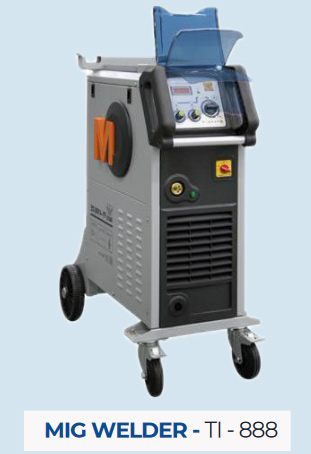

MIG WELDER - TI- 888
SPECIFICATIONS
| Model | TI - 888 |
| Input Voltage | 220V 50/60Hz |
| Rated Input Power | 5 KVA |
| Rated Input Current | 14A / 29A |
| Input Current | 30A |
| Duty Cycle | 35 % |
| No-load Voltage | 20 - 30V |
| Insulation Grade | F |
| Dimension | 380X850X890 mm |
| Weight | 85 Kg |

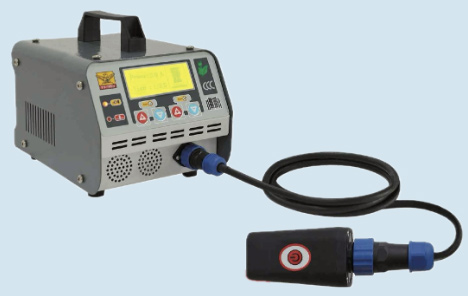

PAINTLESS DENT REMOVER
FEATURES
- Repairs various of dents on the car body caused by strike or impact
- Shorter repair time
- Better repair result
- Less labor cost
- IGBT inverter technology
- High efficiency, energy saving with environmental protection
- Control panel with digital LCD for setting time and power
- Compact size and light weight
SPECIFICATIONS
| Model | PDR - 111 |
| Input Voltagey | 230 V |
| Rated Power | 1100 W |
| Rated Inout Current | 6 A |
| Frequency | 50 / 60 Hz |
| Efficiency | ≥ 90 % |
| Power Factor | ≥ 0.95 |
| Insulation Grade | F |
| Dimension | 260x170x200 mm |
| Weight (without trolley) | 3 Kg |

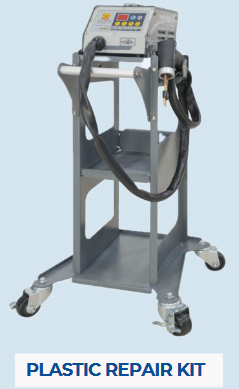

PLASTIC REPAIR KIT
FEATURES
- Short-circuit protection circuit
- Digital control system
- With stepless power adjustment function
- Both sides of the iron cutter can be used to increase the service life.
- Equipped with a variety of hot staples with different shapes and sizes
- Collection of automotive plastic repair kit, pre-repair sanding tools, plastic welding kit and plastic gluing tools
- Covers all repair needs for thermoplastic and thermoset plastic parts, including plastic parts gluing, welding, stapling and meshing.
SPECIFICATIONS
| Model | 2012 S |
| Input Voltage | AC220V 50/60 Hz |
| Input Current | 1.5 A |
| Output Voltage | 2.6 V |
| Output Current | 5 - 30A |
| Dimension | 250x180x135 mm |
| Weight (without trolley) | 4.8 Kg |
