Tire Changers
ON THIS PAGE
Product Catalog
GET IN TOUCH
93-1313-5555
prateekchopra@technomatic.co.in

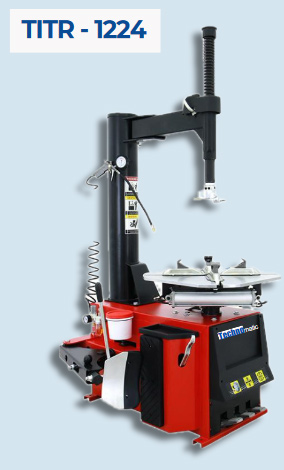

TITR - 1224
FEATURES
- Swing arm and semi-automatic style
- Operate and mounting/demounting work manually
- Plastic front cover
- Strong pneumatic bead breaker
- Modern appearance and excellent performance
- M/D Head with changeable plastic parts to protect rims
SPECIFICATIONS
| Model | TITR - 1224 |
| Power Supply Voltage | 220V 50Hz |
| Motor Power | 0.75 ~ 1.1 KW |
| Bead Breaker Force | 2500 Kg |
| Max. Tire Diameter | 1050 mm |
| Max. Tire Width | 410 mm |
| Noise | < 70dB |
| Net Weight | 230 Kg |
AVAILABLE IN

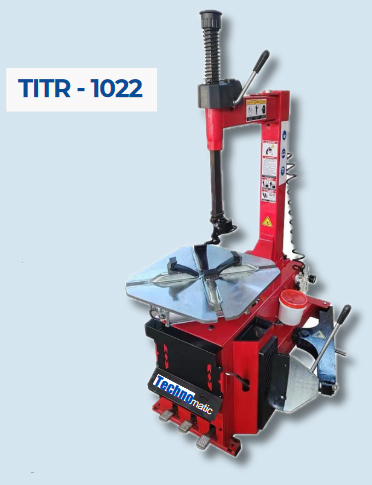

TITR - 1022

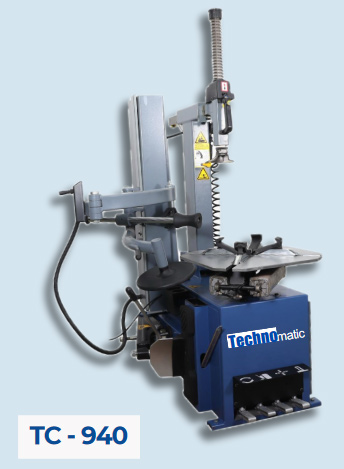

TC - 940
FEATURES
- With tilting column, pneumatic locked at optional position
- Inside and outside of clamps totally protected by plastic guards to prevent damage to the most delicate rims
- Turntable with two pneumatic cylinders
- Manually-operated tilting arm support column with high tensional rigidity in all working positions
- M/D Head with interchangeable plastic parts to protect rims
- Equiped with ergonomic pedal control unit, manometer and high pressure jets
SPECIFICATIONS
| Model | TC - 940 |
| Power Supply | 220 V 50 Hz |
| Motor Power | 0.75 - 1.1 KW |
| Bead - Remove Cylinder | 2500 Kg |
| Operating Pressure | 0.8 - 1 MPs |
| Rim Diameter | 10" - 24" |
| Rim Width | 3" - 16" |
| Max Wheel Diameter | 1000 mm |
| Noise | < 70dB |
AVAILABLE IN

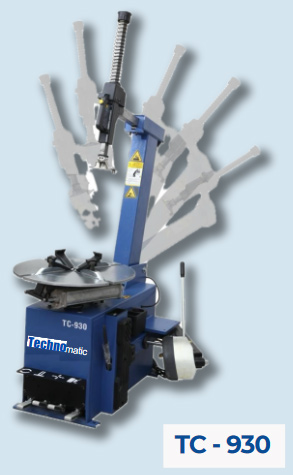

TC - 930
FEATURES
- With tilting column, pneumatic locked at optional position
- Inside and outside of clamps totally protected by plastic guards to prevent damage to the most delicate rims
- Turntable with two pneumatic cylinders
- Manually-operated tilting arm support column with high tensional rigidity in all working positions
- M/D Head with interchangeable plastic parts to protect rims
- Equiped with ergonomic pedal control unit, manometer and high pressure jets
SPECIFICATIONS
| Model | TC - 930 |
| Power Supply | 220 V 50 Hz |
| Motor Power | 0.75 - 1.1 KW |
| Bead - Remove Cylinder | 2500 Kg |
| Operating Pressure | 0.8 - 1 MPs |
| Rim Diameter | 10" - 24" |
| Rim Width | 3" - 16" |
| Max Wheel Diameter | 1000 mm |
| Noise | < 70dB |
AVAILABLE IN

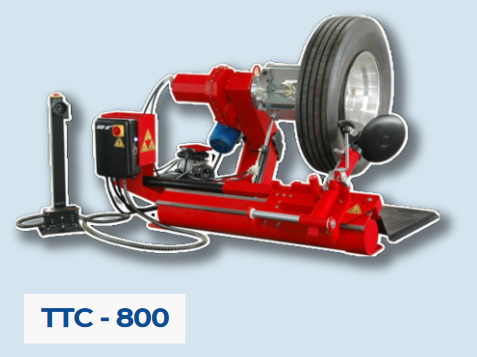

TTC - 800
- Semi-automatic
- Four-jaw universal
- Locking jaws with different gripping possibilities
- Hydraulic motor with pressure regulating device
- Working arm with quick rotation system
SPECIFICATIONS
| Model | TTC - 800 |
| Rim Diameter | 14" - 26" |
| Max. Wheel Weight | 500 Kg |
| Max. Wheel Diameter | 1600 mm |
| Max. Wheel Width | 780 mm |
| Hydraulic Pump Motor | 1.5KW 220V/380V - 3Ph |
| Gearbox Motor | 1.8KW 220V/380V - 3Ph |
| Bead Breaker Force | 2500 Kg |
| Operation Control Voltage | 24V |
| Net Weight / Gross Weight | 570 Kg / 647 Kg |
| Package Size | 2030x1590x1000 mm |

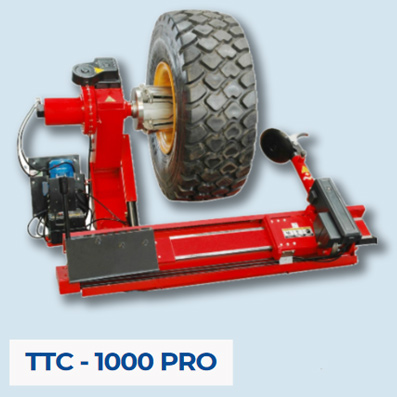

TTC - 1000 PRO
FEATURES
- Semi-automatic
- Four-jaw universal
- Locking jaws with different gripping possibilities
- Hydraulic motor with pressure regulating device
- Working arm with quick rotation system
SPECIFICATIONS
| Model | TTC - 1000 PRO |
| Rim Diameter | 14" - 26" |
| Max. Wheel Weight | 1500 Kg |
| Max. Wheel Diameter | 2500 mm |
| Max. Wheel Width | 1200 mm |
| Hydraulic Pump Motor | 2.4/3.0 KW |
| Gearbox Motor | 2.4/3.0 KW |
| Bead Breaker Force | 2500 Kg |
| Operation Control Voltage | 24V |
| Net Weight / Gross Weight | 1289 Kg / 1300 Kg |
| Package Size | 2310x2100x1100 mm |
