TM - 90

SPECIFICATIONS

Model	TPL - 800 CL
Lifting Capacity	4 TON
Lift Weight	1800 mm
Rise Time	50s
Drop Time	20s
Power of Motor	3Hp
Power Supply	440v/220v
Width of the Rack	3420 mm
Height of the Rack	3549 mm
Width between Pillars	2800 mm
Net Weight	600kg

AVAILABLE IN

Blue Red

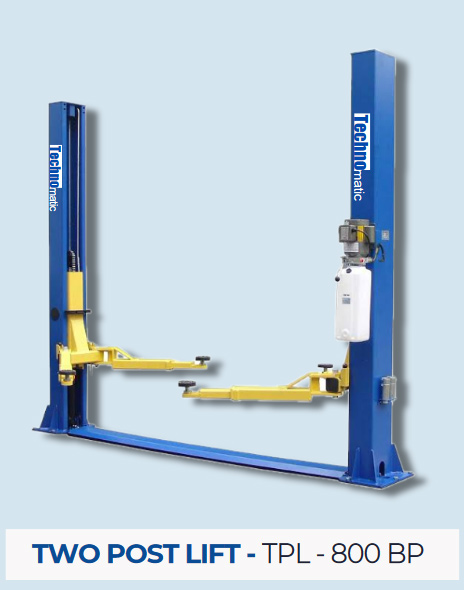

TM - 50

SPECIFICATIONS

Model	TPL - 800 BP
Lifting Capacity	4 TON
Lift Weight	1700 mm
Rise Time	50s
Drop Time	20s
Power of Motor	3Hp
Power Supply	440v/220v
Width of the Rack	3260 mm
Height of the Rack	2725 mm
Width between Pillars	2728 mm
Net Weight	550kg/600kg

AVAILABLE IN

Blue Red

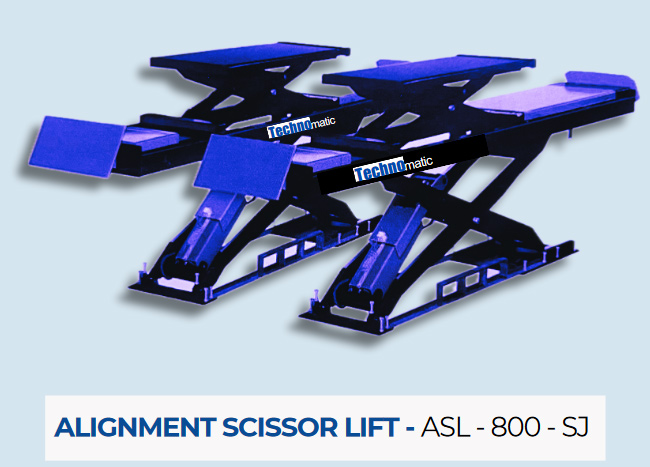

ALIGNMENT SCISSOR LIFT - ASL - 800 - SJ

SPECIFICATIONS

Model	ASL - 700
Lifting Capacity	4 Ton
Lift Weight	1800 mm
Rise Time	40 - 60 s
Power of Motor	2.2KW
Power Supply	380V / 220V
Width of the Rack	3260 mm
Hydraulic	N46
Net Weight	2000 Kg

AVAILABLE IN

Blue Red

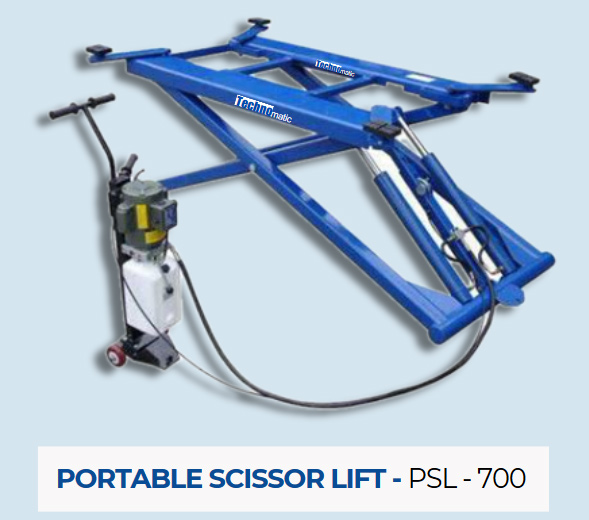

PORTABLE SCISSOR LIFT - PSL - 700

SPECIFICATIONS

Model	PSL - 700
Lifting Capacity	4 Ton
Lift Weight	1400 mm
Min. Height	180 mm
Power Supply	440v/220v
Outer Dimensions	2550x1000x180 mm
Net Weight	385 Kg

AVAILABLE IN

Blue Red

FOUR POST LIFT - FPL - 800 WJ
