Body Shop Equipment

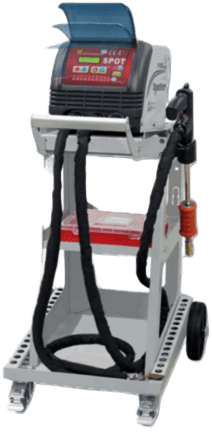

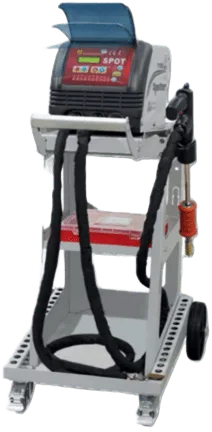

Dent Puller
TDP-666
SPECIFICATIONS
Model
TDP-666
Input Voltage
220V 50/60Hz
Output Voltage
AC1V-10V Carbon Rod Heating
AC6V-12V Washer Fusion
AC1V-13V Butt Weld
Input Power
13KW
Instant Max. Current
5400A
Input Current
55A
Operation Way
Continuity
Time Regulation System
0-99 m/s
Operation Place
Stepless
One Side Welding Thickness
0.8 + 1.2 mm
Vacuum Cupule Device
180 Kg
Dimension
620X450X980 mm
Weight
80 Kg

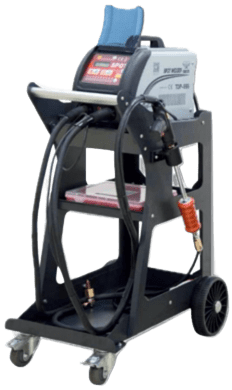

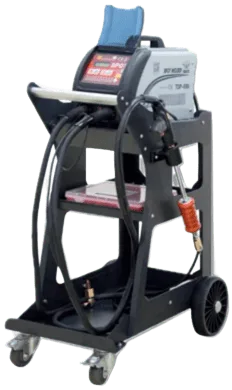

Dent Puller
TDP-555
SPECIFICATIONS
Model
TDP - 555
Input Voltage
220V 50/60Hz
Output Voltage
AC6V-10V Carbon rod heating
AC1V-12V Washer Fusion
AC1V-13V Butt Weld
Input Power
10KW
Instant Max.
Current 2000A
Input Current
30A
Operation Way
Continuity
Time Regulation System
0-99 m/s
Operation Place
Stepless
One Side Welding Thickness
0.8 + 1.2 (mm)
Vacuum Cupule Device
180 Kg
Dimension
460x480x1050 (mm)
Weight
35 Kg
Plasma Cutter
TDP – 100
SPECIFICATIONS
Model
TDP - 100
Input Voltage
AC 220V 50/60Hz ±10%
Input Power Capacitance
4.8kva
No-Load Voltage
230 V
Output Current Range
15 - 40 A
Rated Output Voltage
94V
Rated Duty Cycle
35 %
Efficiency
80 %
Power Factor
0.93 Cosθ
Insulation Class
B
Protection Class
IP23
Arc-Starting
Touch arc-leading
Max. Cutting Thickness
12 mm
Overall Dimension
410x165x260 mm
Weight
8 Kg

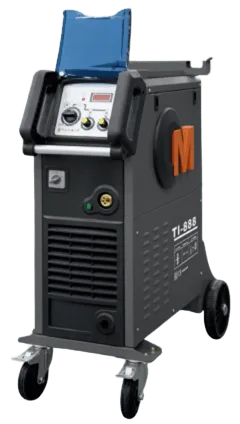

Mig Welder
TI – 888
SPECIFICATIONS
Model
TI-888
Voltage
AC 220V/1ph
Frequency
50/60Hz
Rated Max Input Current
10.8A
Max Effective Input Current
9.6A
No-load Voltage
20-30V
Duty Cycle
35 %
Welding Current
35-220A
Insulation Grade
F
Overall Dimension
850x380x770mm
Weight
85kg
Output Current Voltage
35A/17V-220A/24V
Wire Diameter
Mild Steel Solid Wire 0.8/1.0 mm

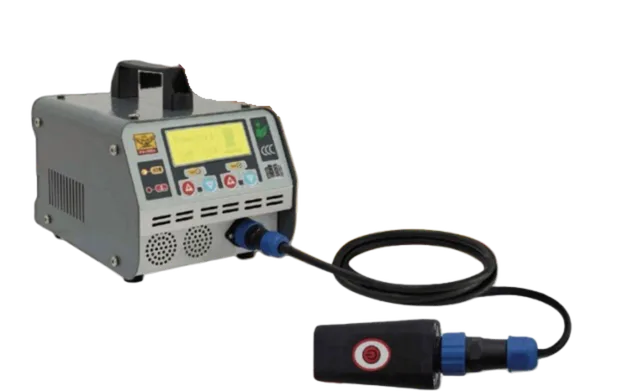

Paintless Dent Remover
TIPDR – 111
SPECIFICATIONS
Model
TIPDR-111
Input Voltage
220V
Rated Power
1100 W
Rated Input Current
6 A
Frequency
50 / 60 Hz
Efficiency
≥ 90 %
Power Factor
≥ 0.95
Insulation Grade
F
Dimension
260x170x200
mm
Weight (without trolley)
3 Kg
Features
- Repairs various dents on the car body caused by strike or impact
- Shorter repair time
- Better repair result
- Less labor cost
- IGBT inverter technology
- High efficiency, energy saving with environmental protection
- Control panel with digital LCD for setting time and power
- Compact size and lightweight
Plastic Repair Kit
TIPR – 222
SPECIFICATIONS
Model
TIPR-222
Input Voltage
AC220V 50/60Hz
Input Current
1.5 A
Output Voltage
2.6 V
Output Current
5 - 30A
Dimension
250x180x135 mm
Weight (without trolley)
4.8 Kg
Features
- Digital control system
- With stepless power adjustment function
- Equipped with a variety of hot staples with different shapes and sizes
- Covers all repair needs for thermoplastic and thermoset plastic parts, including plastic parts gluing, welding, stapling and meshing.

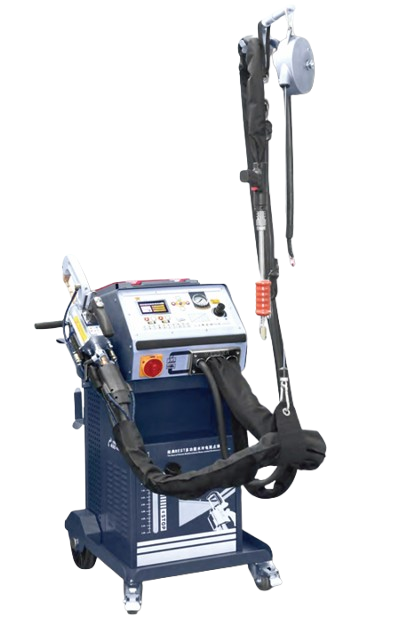

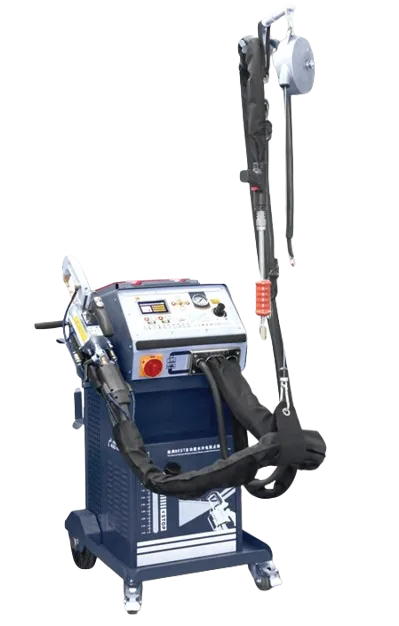

Multifunctional Water-Cooled IGBT Inverter Spot Welder
TM SPOT PRO
SPECIFICATIONS
Input Voltage
330 15% 50/60 Hz
Input Power
45KVA
Max Output Current
9900A
Weld Thickness
3.0 + 3.0mm
Weld Nugget Diameter
4-9mm
Operating Mode
Semi-Automatic
Air Source Pressure
3-8kg
Two Sided Welding Gun Cable
2m
One Sided Welding Gun Cable
3m
Dimensions
620x520x1950mm
Weight
137kg
Features
- Automatic monitoring of supply voltage
- Suitable for repairing steel and stainless steel car bodies
- Equipped with high-quality brand relays, DELIXI, OMRON & PANASONIC
- With air filter and pressure regulator
- Single & double-sided welding is available
- C-type spot welding gun with stepping piston and 2-step fast backward
